Casting resin for LCD 3D Print

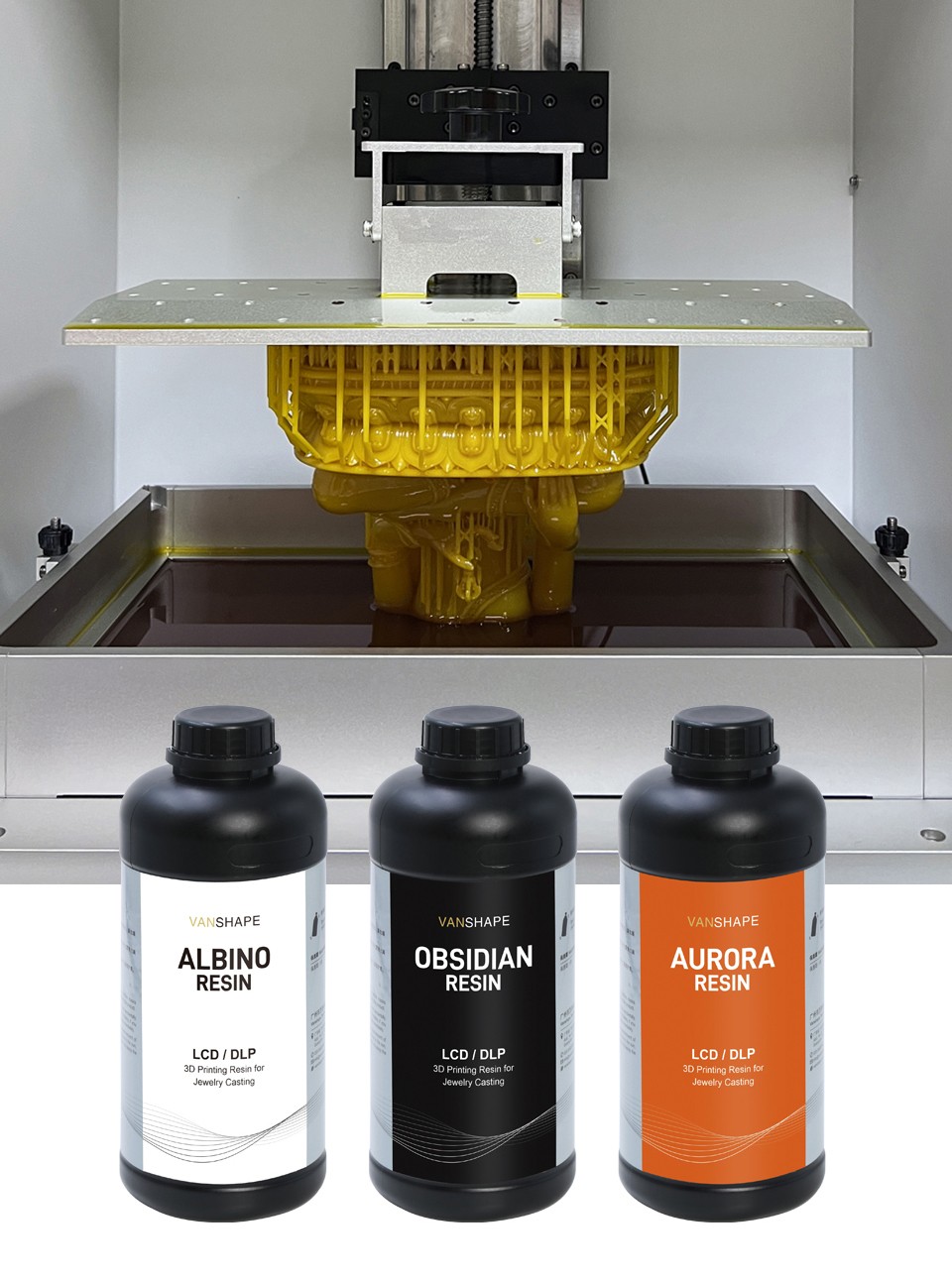

2025 New DLP Light Curing 3D Printing Resin Ultra HD Jewelry Resin



Product Details

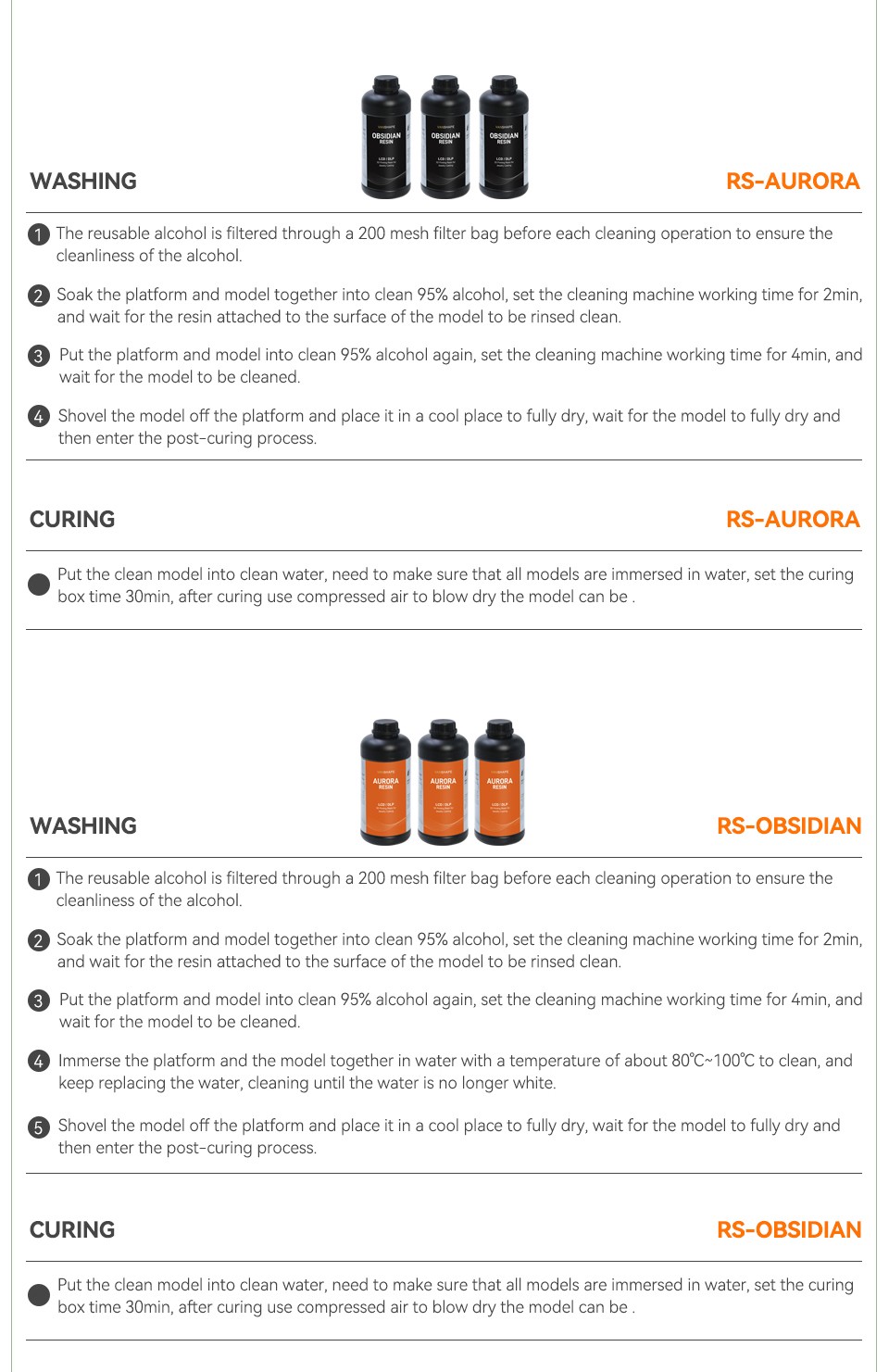

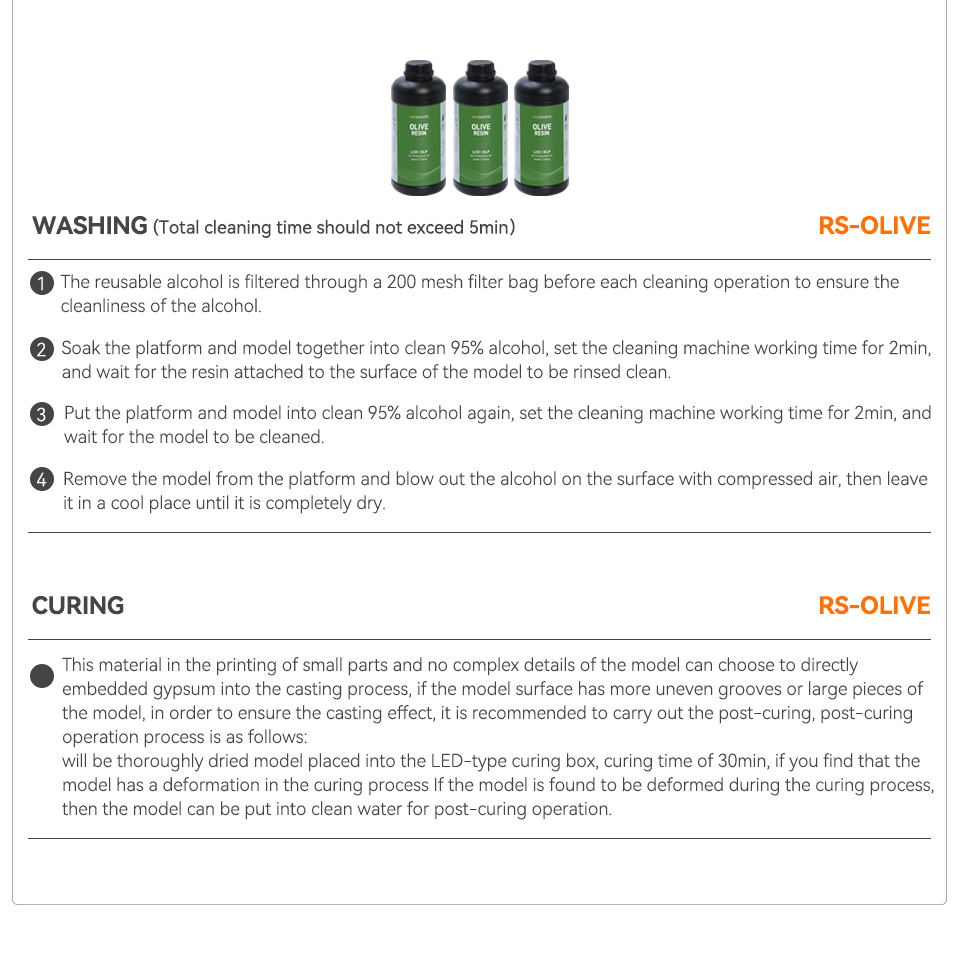

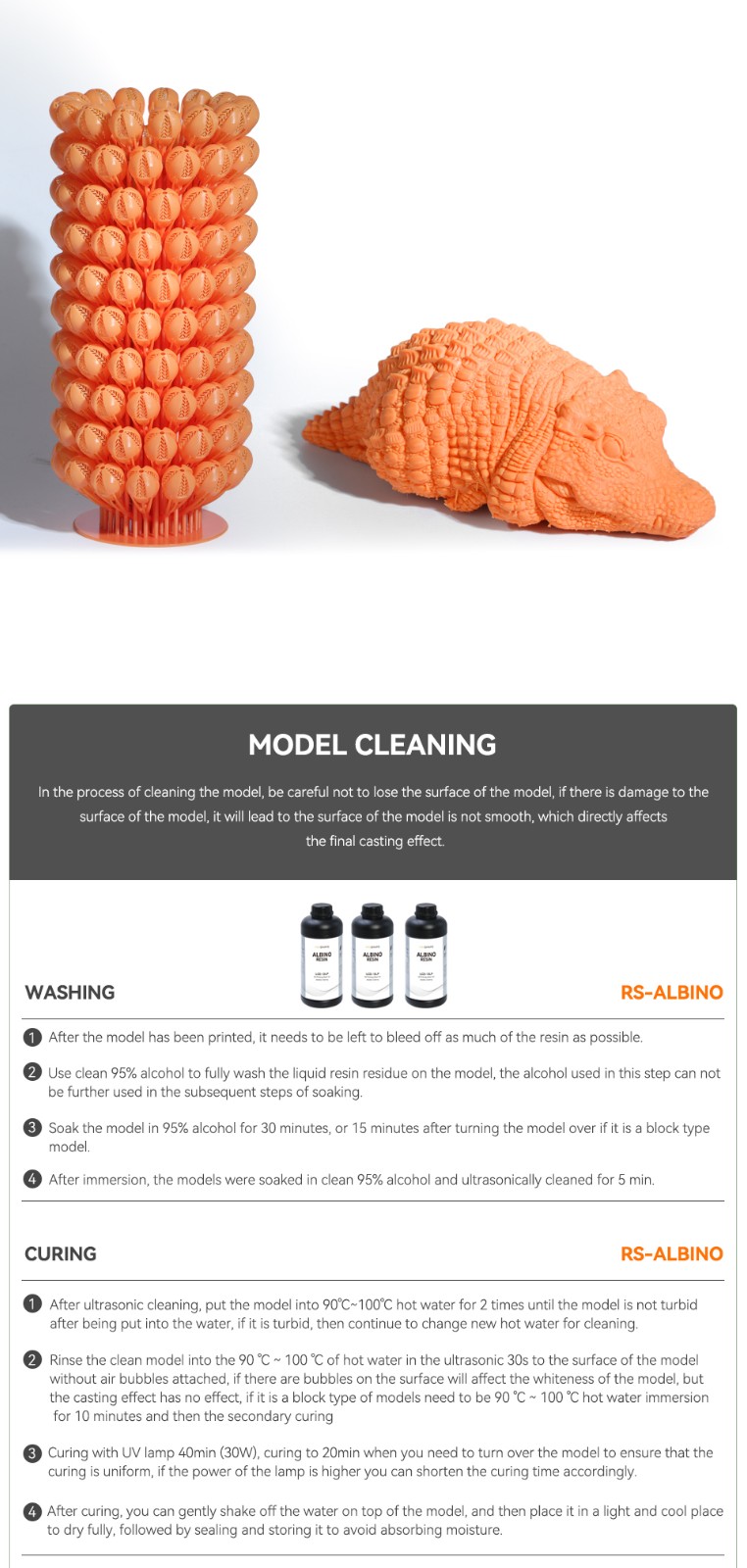

WASHING

1.After the model has been printed, it needs to be left to bleed off as much of the resin as possible

2.Use clean 95% alcohol to fully wash the liquid resin residue on the model, the alcohol used in this step can not

be further used in the subsequent steps of soaking.

3.Soak the model in 95% alcohol for 30 minutes, or 15 minutes after turning the model over if it is a block type

model.

4.After immersion, the models were soaked in clean 95% alcohol and ultrasonically cleaned for 5 min.

CURING

1.After ultrasonic cleaning, put the model into 90'c~100'c hot water for 2 times until the model is not turbid

after being put into the water, if it is turbid, then continue to change new hot water for cleaning.

2.Rinse the clean model into the 90 'c ~ 100 'c of hot water in the ultrasonic 30s to the surface of the model

without air bubbles attached, if there are bubbles on the surface wil affect the whiteness of the model. but

the casting effect has no effect, if it is a block type of models need to be 90 'C ~ 100 'c hot water immersion

for 10 minutes and then the secondary curing

3.Curing with UV lamp 40min (30W), curing to 20min when you need to turn over the model to ensure that the

curing is uniform, if the power of the lamp is higher you can shorten the curing time accordingly.

4.After curing, you can gently shake off the water on top of the model, and then place it in a light and cool place

to dry fully, followed by sealing and storing it to avoid absorbing moisture.

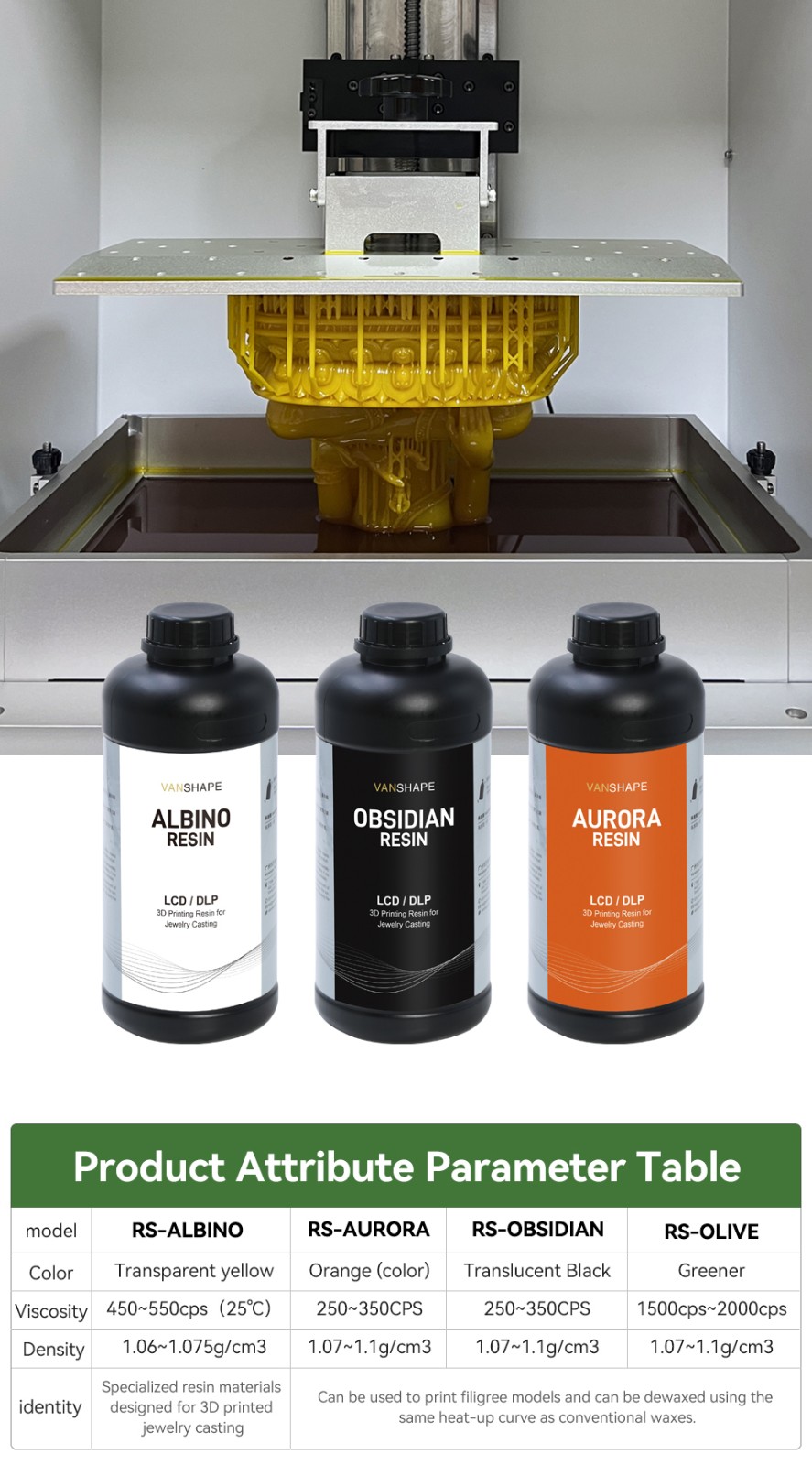

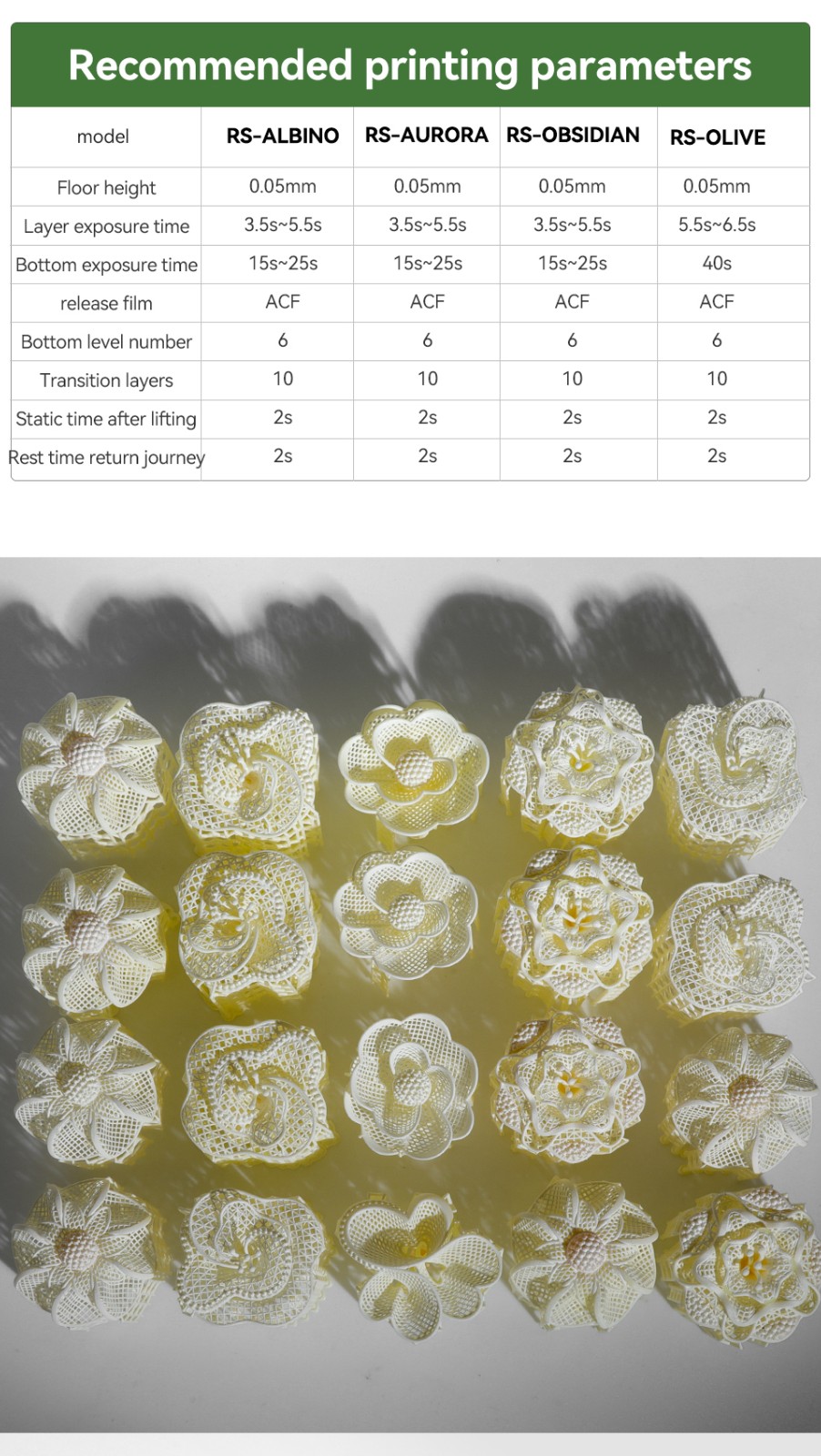

Product Attribute Parameter Table
modelRS-ALBINORS-AURORARS-OBSIDIANRS-OLNVE
Color

Transparent

 yellow

Orange

 (color)

Translucent

Black

Greener
Viscosity

250~350

CPS

250~350

CPS

250~350

CPS

1500cps~2000CPS
Density

450~55

0cps(25°C)

1.07-1.1g/cm31.07-1.1g/cm31.07-1.1g/cm3
identity

Specialized resin materials

designed for 3D printed

jewelry casting

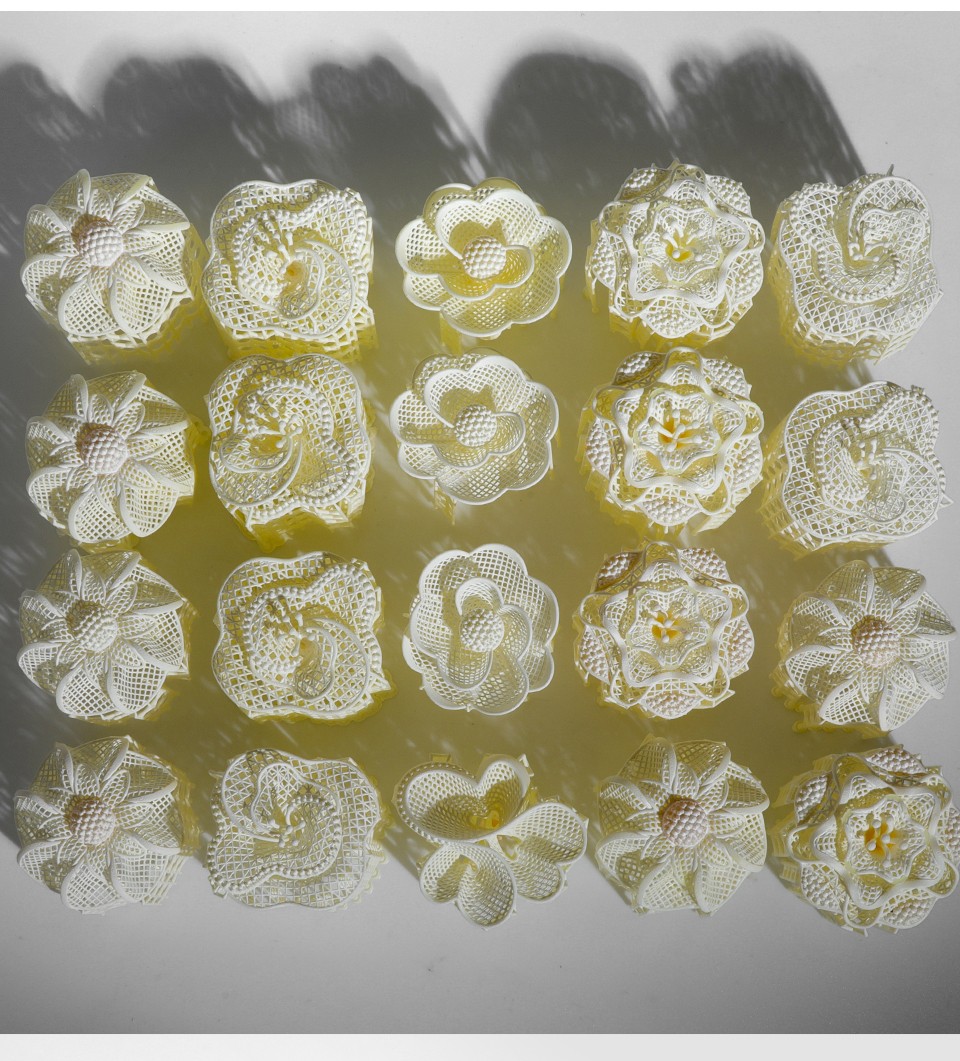

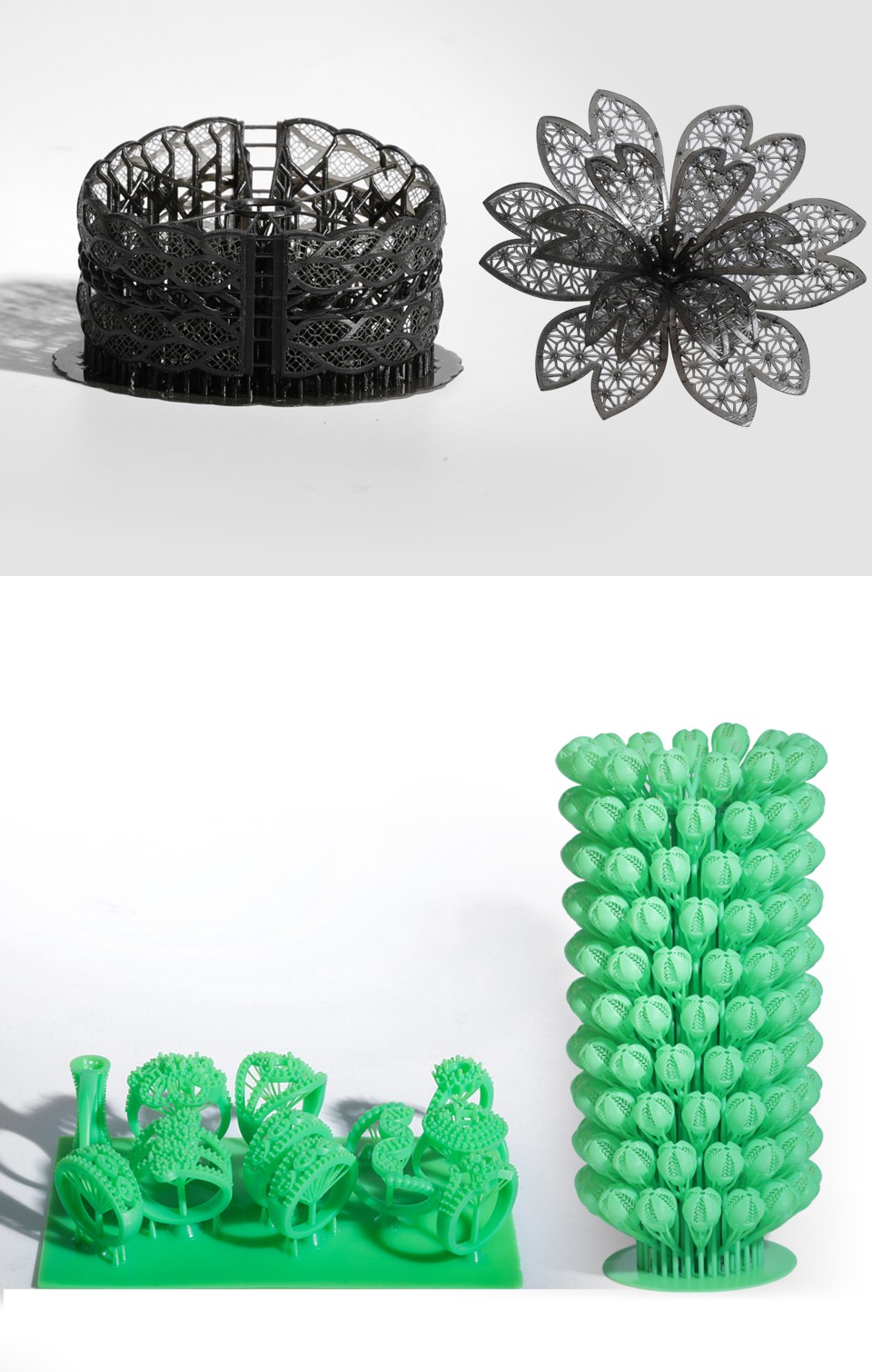

Can be used to print filigree models and can be dewaxed using the

same heat-up curve as conventional waxes.
