UV Curing Box

UV curing box



Product Details
Outside size430×300×340mm(L*W*H)
Inside size220×200×180mm(L*W*H)
Weight10KG
Input Voltage100-240V 50/60HZ
Power130W
Light sourceIntegrated LED UV lamp
Time for curing30-60 minutes

Features:

1. With high light efficiency, stable output, long life, operation and maintenance costs can be reduced.

2. Fast curing, resin not cracked after being cured in the box.

3.High-power and all-steel reducer with worm gears, with high speed of 12rmp/min.

4. High power 400-405μm integrated UV lamp beads, cold light source, no heat radiation.

5.A slient fan.

6. Wide voltage input.

7. Super large heat dissipation aluminum plate, better heat dissipation effect.

8. Three rotating wear-resistant ball bearings are installed on the rotating disk, making the life of the whole machine longer.

9. No harmful substances containing heavy metal elements, Environmentally-friendly.

10. Saving more than 80% electricity than traditional mercury lamps.

11. Inside the box, there is mirror stainless steel is used for reflection, so the light utilization rate is up to more than 95%, and resin model can be cured evenly, with no dead angle in 360 degrees.

12. Small size, strong applicability and easy to install.

13. The full-plate gold body, firm and durable.

14. Wide range of application.

Application:

1. Jewelry.

2. Optical glass.

3. Hand-made model.

4. UV teaching laboratory.

5. Curing for 3D printing.

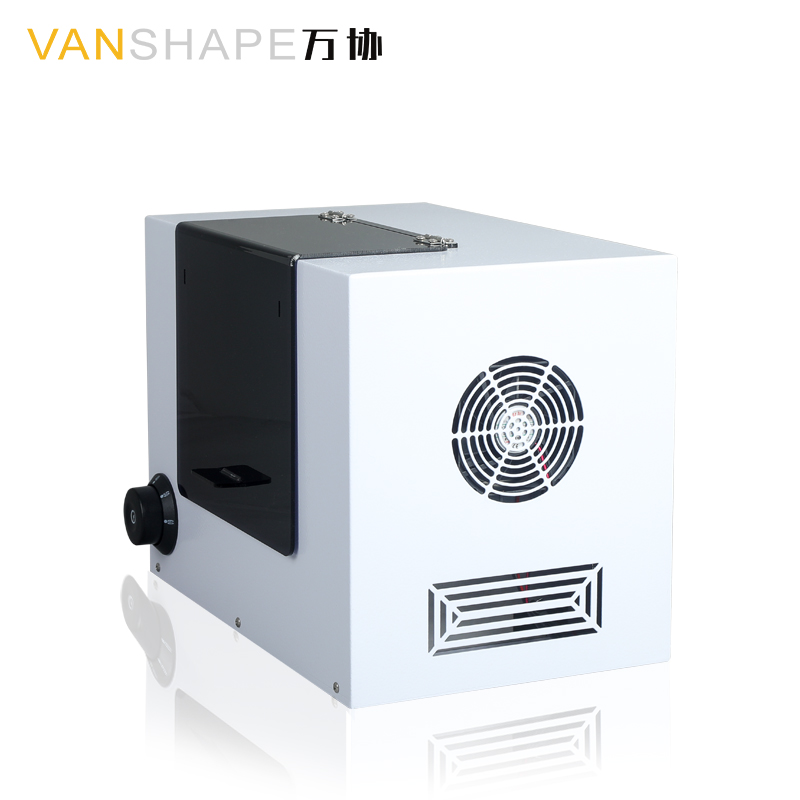

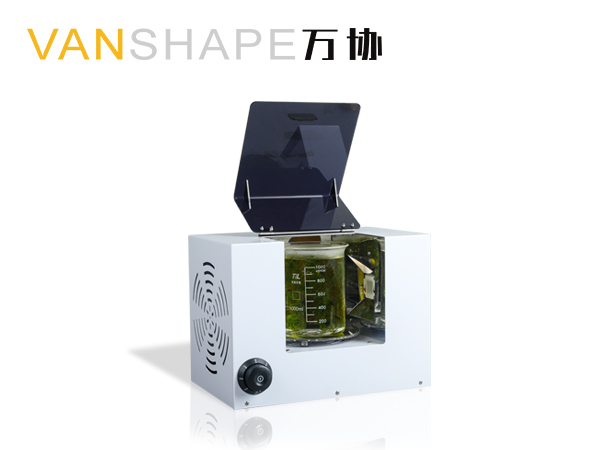

固化箱主图打开 600×450.jpg

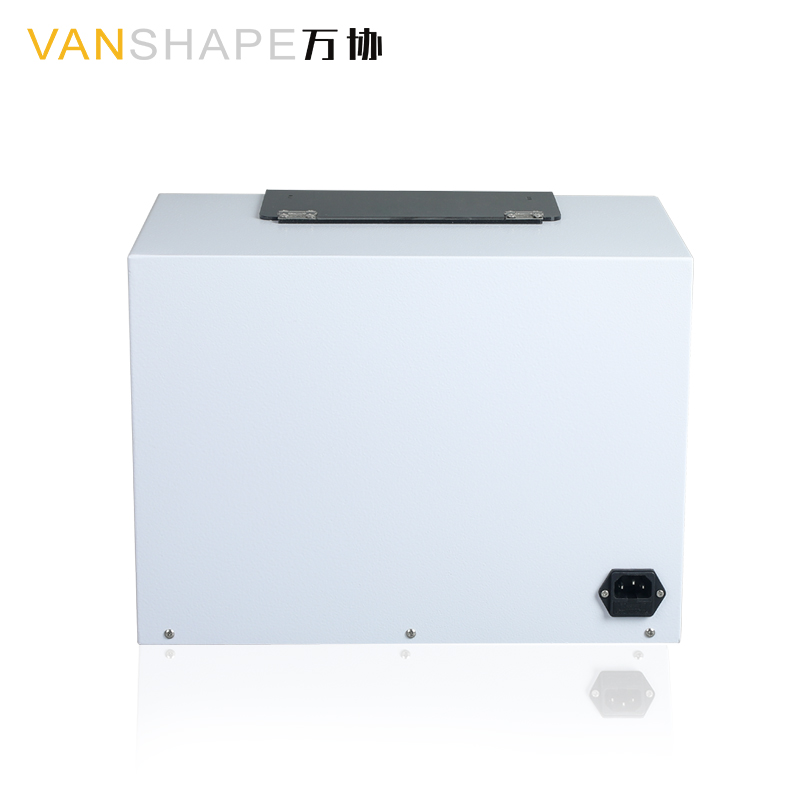

固化箱主图背面 800×800.jpg


固化箱主图侧面 800×800.jpg
